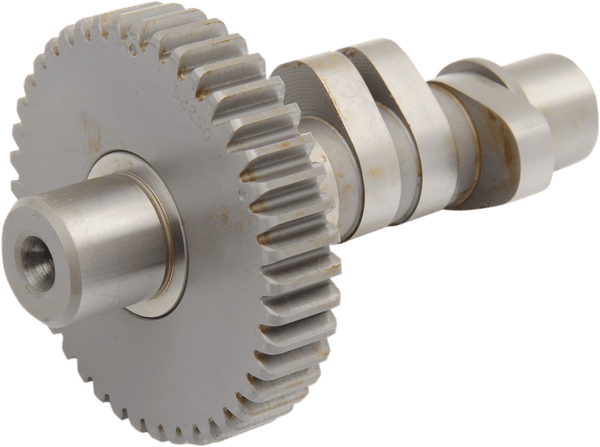

S&S Cycle 33-5050 514 Camshaft

For lower compression 84in. to 93in. motors, not more than 9:1 Compression. Best response from 2500 to 5000 rpm. Recommend solid or performance aftermarket hydraulic lifters. Intake Opening (degrees): 23. Intake Closing (degrees): 43. Exhaust Opening (degrees): 43. Exhaust Closing (degrees): 23. Intake Duration (degrees): 246. Exhaust Duration (degrees): 246. Intake Lift (in): .514in. Exhaust Lift (in): .475in. For lower compression 84in. to 93in. motors, not more than 9:1 Compression. Best response from 2500 to 5000 rpm. Recommend solid or performance aftermarket hydraulic lifters. Intake Opening (degrees): 23. Intake Closing (degrees): 43. Exhaust Opening (degrees): 43. Exhaust Closing (degrees): 23. Intake Duration (degrees): 246. Exhaust Duration (degrees): 246. Intake Lift (in): .514in. Exhaust Lift (in): .475in. Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
